19 inch 6U-18U Network Wall Mount Cabinet

  • 19 inch 6U-18U Network Wall Mount Cabinet
  • 19 inch 6U-18U Network Wall Mount Cabinet
  • 19 inch 6U-18U Network Wall Mount Cabinet
  • 19 inch 6U-18U Network Wall Mount Cabinet

19 inch 6U-18U Network Wall Mount Cabinet

    Payment Type: L/C,T/T,D/P,Paypal
    Terms of Trade: FOB,CFR,CIF,EXW,FCA
    Min. Order: 20 Piece/Pieces
    Delivery Time: 30 Days
    Packaging: Assembled or Disassembled Packing
    Productivity: 1000 per week
    Brand: Jingchengmei
    Transportation: Ocean,Land,Air
    Place of Origin: china
    Supply Ability: 1000 per week
    Certificate: ISO9001
    HS Code: 85177090
    Port: Ningbo,Shanghai

Basic Info

Model No.: JC-WMA

Product Description

Product Description


19 inch 6U 9U 12U 15U 18U Server Rack Wall Mount Cabinet


Below are the details of our regular items and the Cabinet is customized according to the different application or requirements.




Standard
Comply with ANS/EIA RS - 310 - D, IEC297 - 2, DIN 41491, PART 1, DIN41491, PART7, ETSI Standard
Features
1. Material: SPCC Cold Rolled Steel; Mounting profile:2.0mm,others: 1.00mm

2. Toughened glass for front door and Seel metal for rear door with small cylinder lock

3.Removable side panel , optional lock and door

4.Top or Bottom cable entrance

5. Maximum Static Loading Capacity: 60KGS

6. Degrease, parkerizing, powder coated for the surface

7. Color:Ral 9004 or Ral 7035

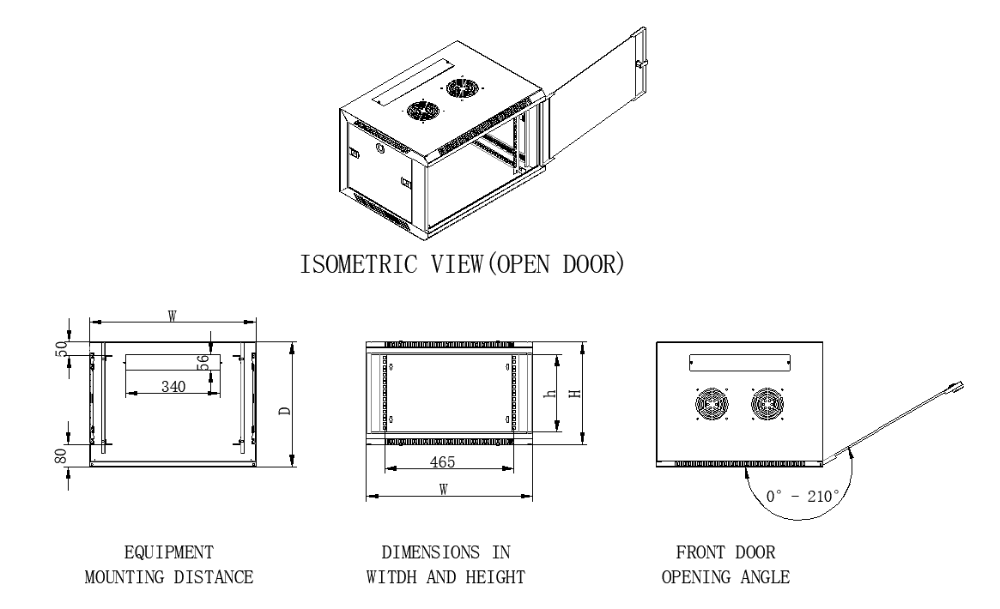

Specification
Height
4U 6U 9U 12U 15U 18U 22U 27U
Width
600 mm
Depth
450 mm /600 mm
Product Number
U
Dimensions(mm)

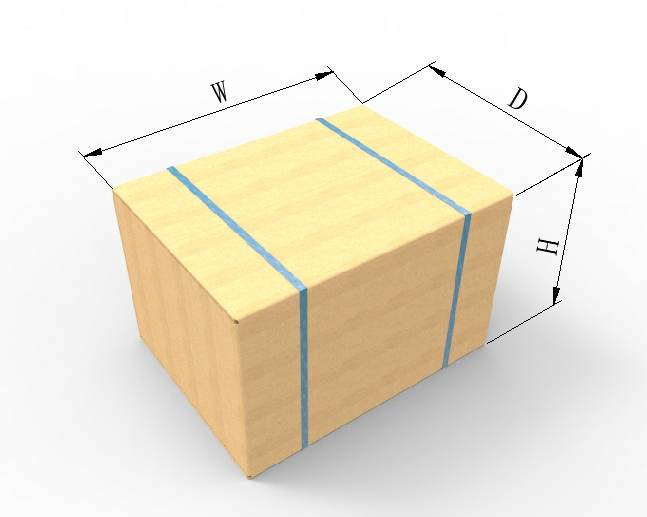

Packing Size(mm)
volume
Weight
W*D*H
h
ah
W*D*H
(CBM)
(Kg)
JC-WMWA604504U-CC
4
600*450*281
191
101
615*465*296
0.085
11.8
JC-WMWA604506U-CC
6
600*450*370
280
190
615*465*385
0.11
14
JC-WMWA604509U-CC
9
600*450*503
413
323
615*465*518
0.148
17.2
JC-WMWA604512U-CC
12
600*450*637
547
457
615*465*652
0.186
20.4
JC-WMWA604515U-CC
15
600*450*770
680
590
615*465*785
0.225
23.7
JC-WMWA604518U-CC
18
600*450*903
813
723
615*465*918
0.263
26.9
JC-WMWA604522U-CC
22
600*450*1081
991
901
615*465*1096
0.313
31.2
JC-WMWA604527U-CC
27
600*450*1303
1213
1123
615*465*1318
0.377
36.5

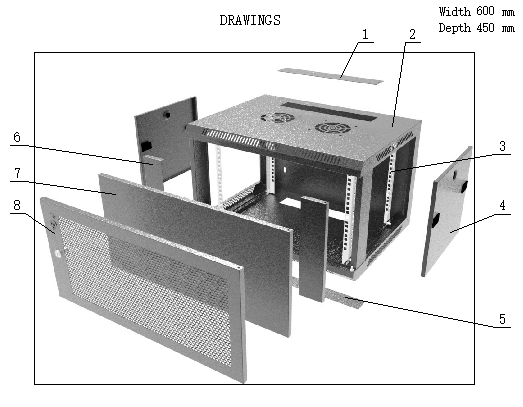

No
Componet Name
Quantity
Unit
Material Specification
Surface Finish
Note
1
Top Cover
1
PC
SPCC cold rolled steel T1.0
Powder Coated

2
Frame
1
PC
SPCC cold rolled steel T1.0
Powder Coated

3
Mounting Profile
4
PC
SPCC cold rolled steel T2.0
Powder Coated

4
Side Panel
2
PC
SPCC cold rolled steel T1.0
Powder Coated

5
Bottom cover
1
PC
SPCC cold rolled steel T1.0
Powder Coated

6
Glass door
1
PC
Tempered glass 5mm
Powder Coated

7
Steel door
1
PC
SPCC cold rolled steel T1.0
Powder Coated
match
8
Perforation steel door
1
PC
SPCC cold rolled steel T1.0
Powder Coated
match
9
M6 B-head screw
10
PC
Steel
Color Zinc
accessories
10
M6 square nut
10
PC
Steel
Color Zinc
accessories
11
Allen Wrench
1
PC
Steel
Block
accessories
12
Fixed tray




match
13
Power outlet




match
14
Ventilation fan




match
UPacking & Delivery

Packaging: 1 pc per direct export outer carton;

Delivery: about 30 days after payment
